CO2 laser machines are widely used in various industries, including manufacturing, medical, and scientific research. These machines use a high-powered laser beam to cut, engrave, and mark various materials, including wood, plastic, and ABS material.
Like any other machinery, CO2 laser machines require regular maintenance to ensure optimal performance. This includes replacing worn out or damaged spare parts. Some of the commonly replaced CO2 laser machine spare parts include:
- Laser tube: The laser tube is the heart of the CO2 laser machine, and it’s responsible for producing the laser beam. Over time, the tube can degrade, resulting in reduced performance. Therefore, it is essential to replace the laser tube when necessary.
- Mirrors and lenses: Mirrors and lenses are essential components of the CO2 laser machine that help direct and focus the laser beam. These components can accumulate dust, debris, or scratches that can impact the quality of the laser beam. Replacing them regularly helps maintain the machine’s optimal performance.
- Power supply: The power supply provides the necessary voltage and current to the laser tube. When the power supply fails, it can result in reduced performance or total machine failure. Regularly checking and replacing the power supply when necessary is essential.
- Cooling system: The CO2 laser machine generates a lot of heat, which can damage the components. Therefore, a cooling system is necessary to prevent overheating. Replacing the cooling system’s components, including the water pump, radiator, and fan, is essential for optimal performance.
In conclusion, regular maintenance of CO2 laser machines is essential to ensure optimal performance. Replacing worn out or damaged spare parts, including the laser tube, mirrors and lenses, power supply, and cooling system components, is necessary to keep the machine in good working condition.

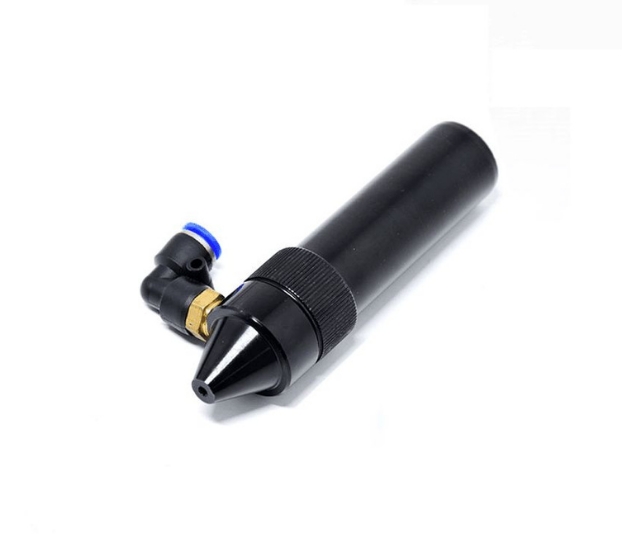

Product Parameter:-
| Material | HDPE |
| Color | Black |
| Corrosion Resistance | Yes |
| Diameter | 1 inch |
| Height | 7 inch |
| Country of Origin | Made in India |

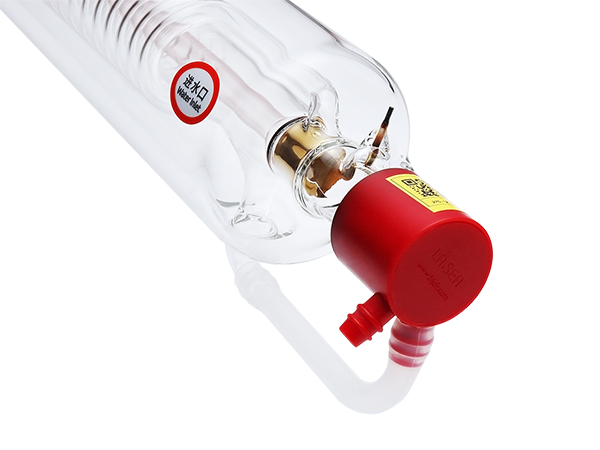

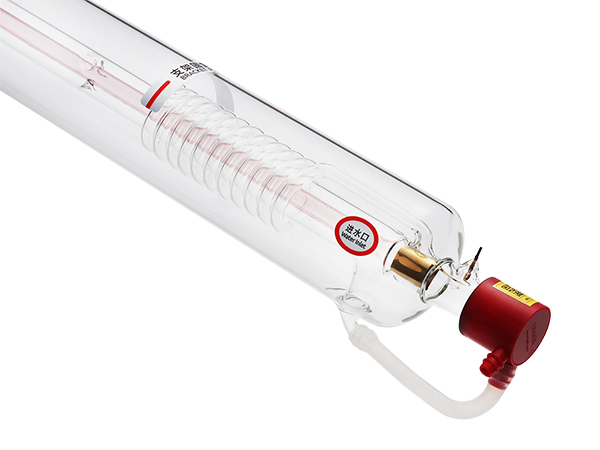

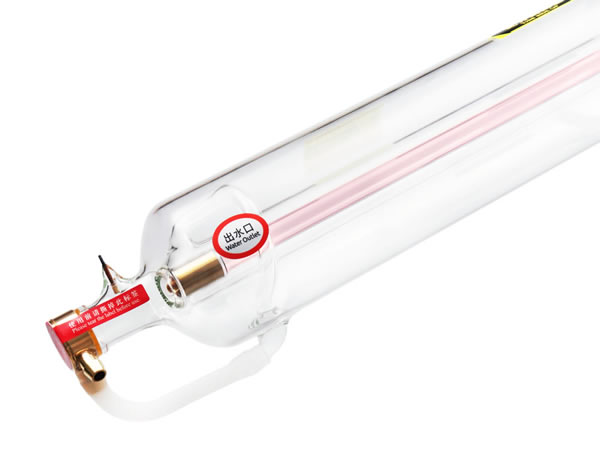

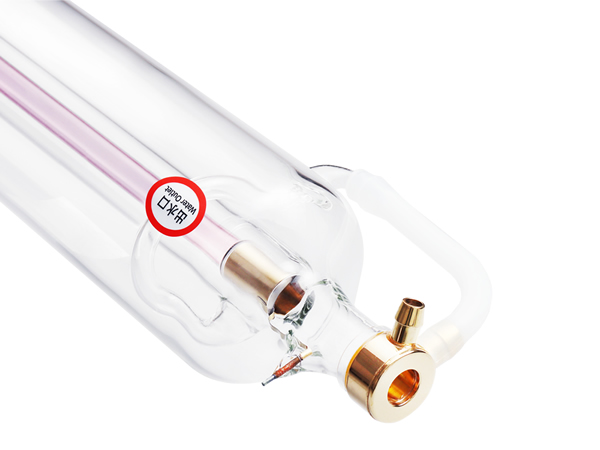

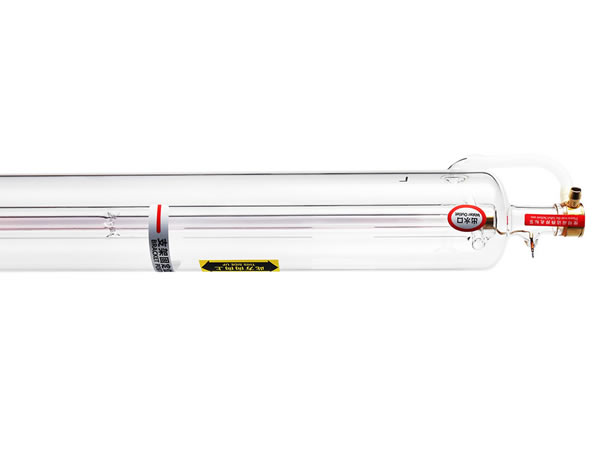

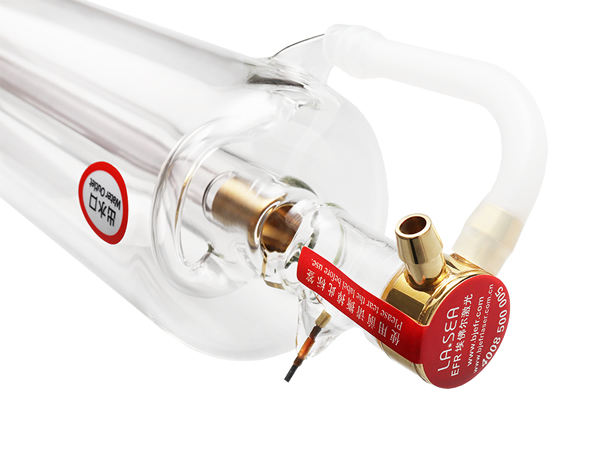

EFR Laser Tubes
F series CO2 Laser tube is an upgraded laser machine accessory equipped with a German discharge tube that has been galvanized with a catalyst. Its laser power reaches up to 200W, which is 30% more than traditional laser tubes. This cost effective classic CO2 Laser tube has a compact size, stable laser power, high-quality laser beam, great beam mode, a small light spot, a fast speed and a service life of up to 6,000 hours.
Technical Parameter:-
| Model | Length(mm) | Outer Power(W) | Maximum Power(W) |
| F2 | 1250±20 | 80 | 95 |
| F4 | 1450±20 | 100 | 120 |
| F6 | 1650±20 | 130 | 150 |

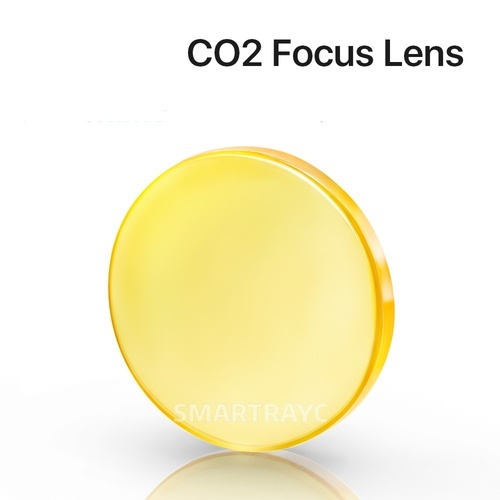

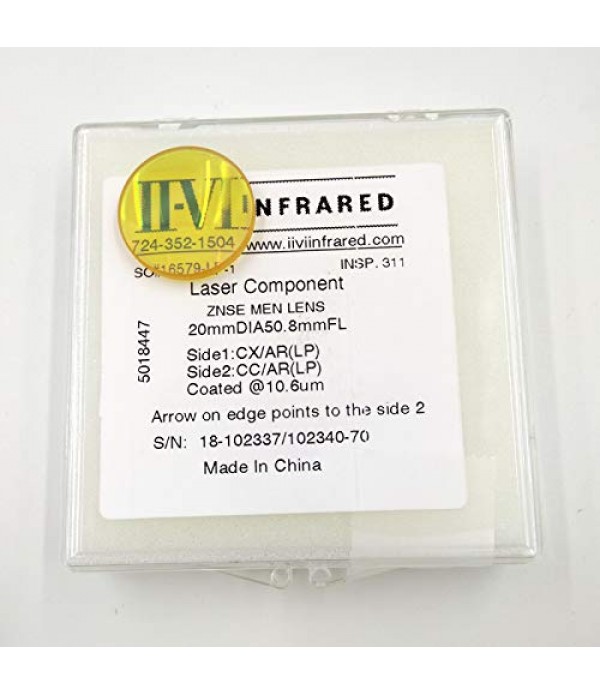

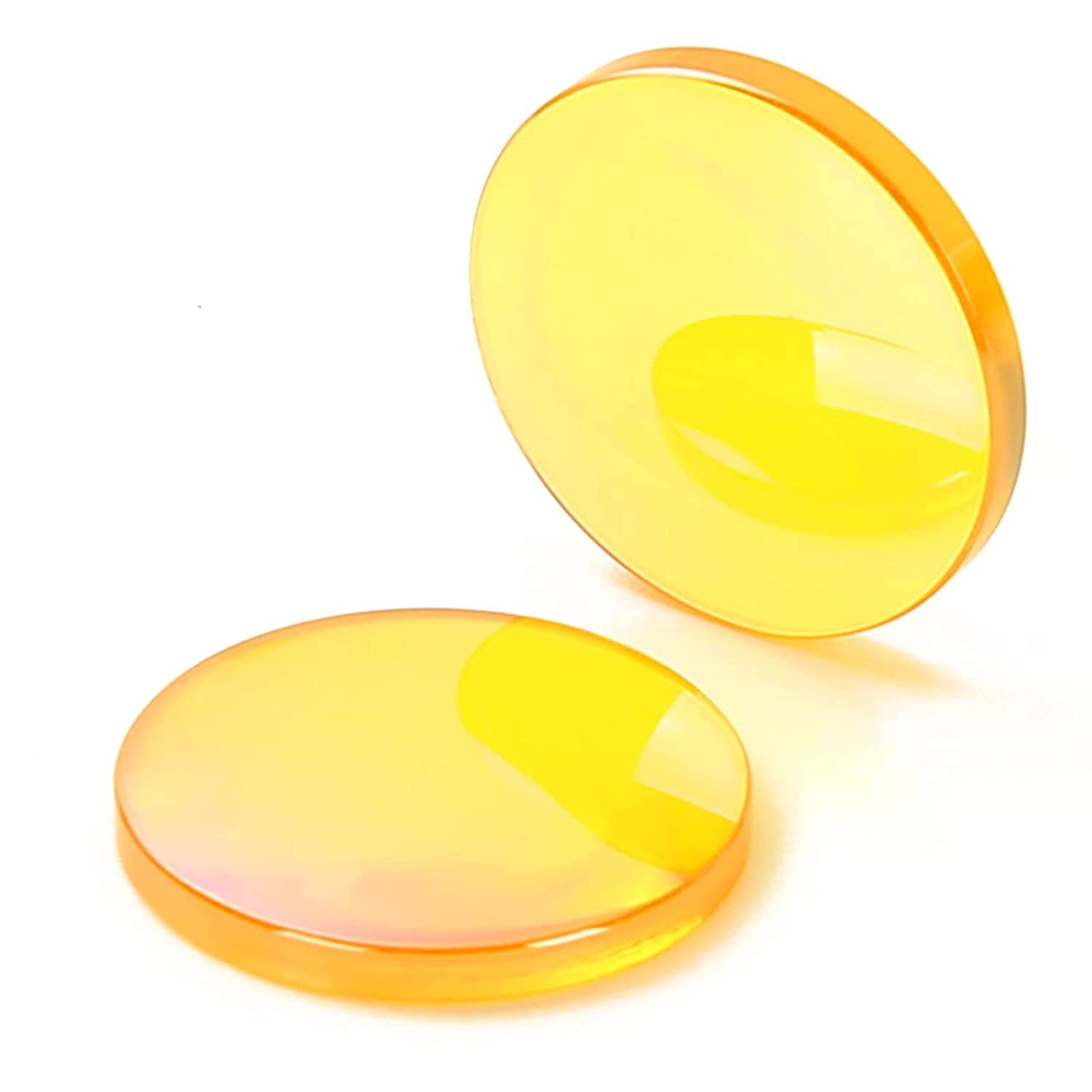

Laser Lenses
Infrared Laser Lens is one of the Best Lens for CO2 Laser Machines in the Market due to its good reflective strength and Long Life it is preferred by Customers. Due to its strong reflecting strength, it initiates fine cutting of Acrylic, MDF Wood, Leather, Plastic, PVC.
Technical Parameter:-
| Material | Glass |
| Brand | II-VI Infrared |
| Part Number | 724-352-1504 |
| Usage/Application | For Laser Machine |
| Lens Type | Infrared Laser Lens |
| Shape | Round |
| Thickness | 2 mm |
| Diameter | 20 mm |
| Coated | 10.6 micro m |
| Feature | Arrow on Edge Points To The Side 2 |

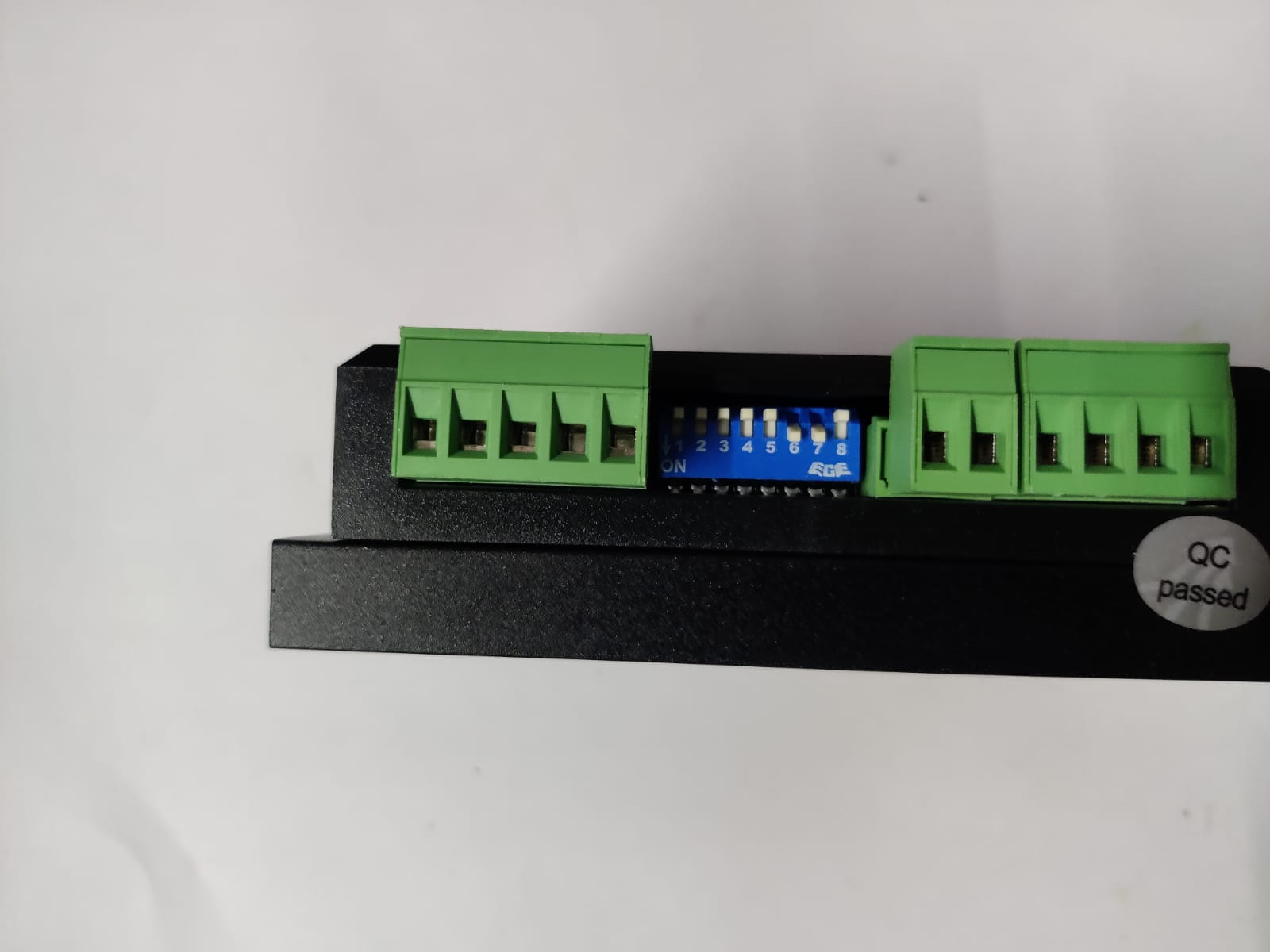

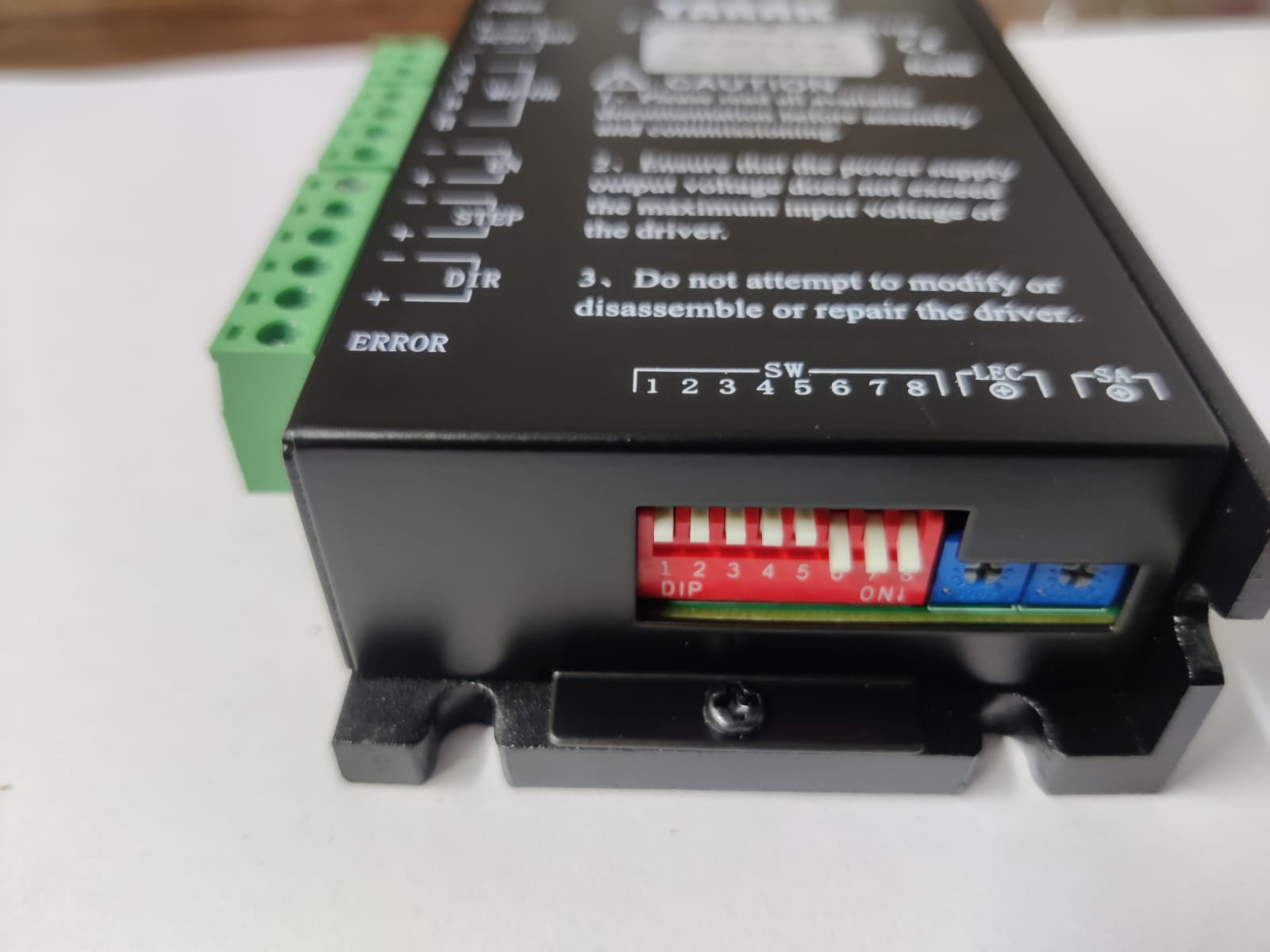

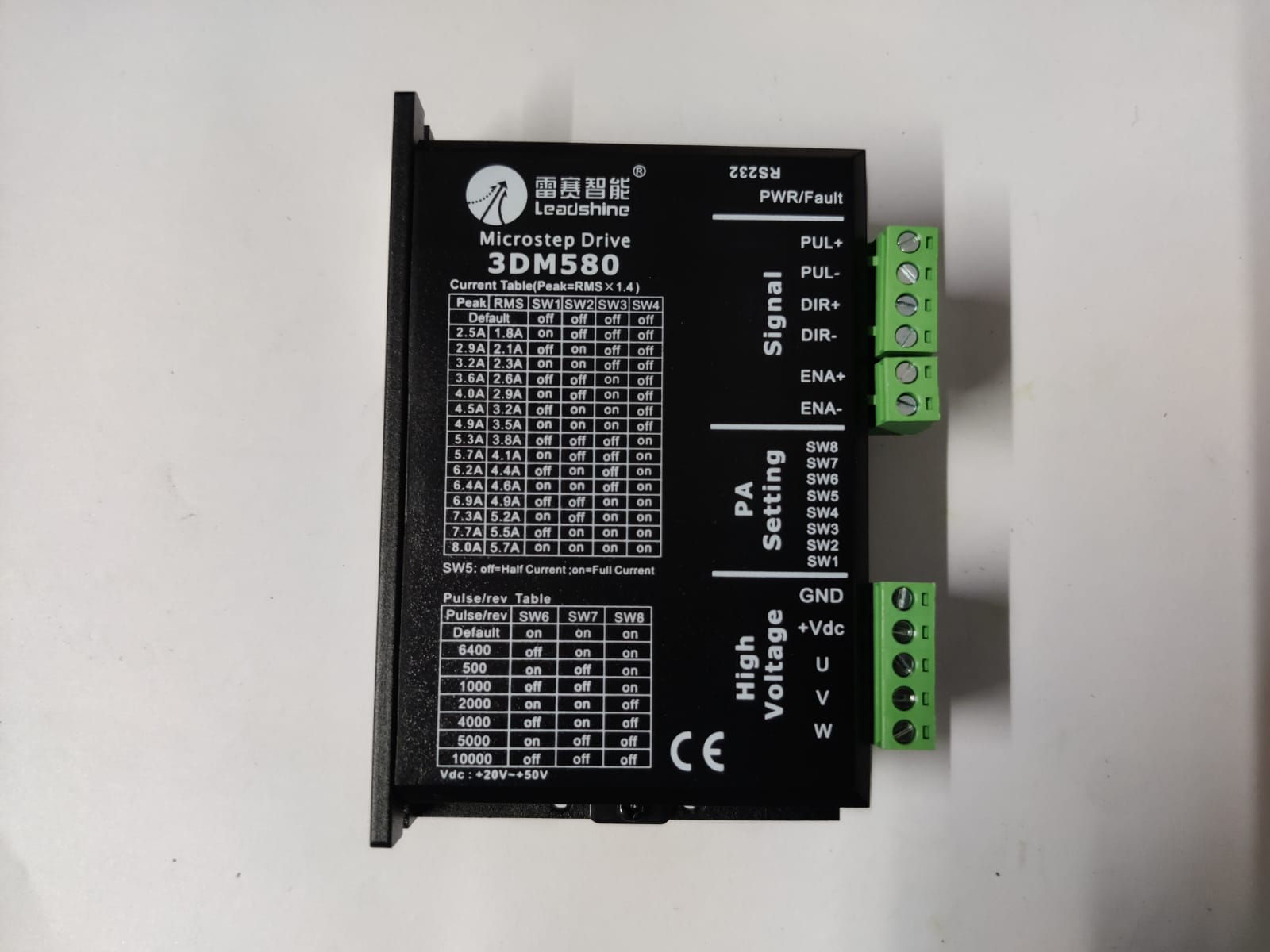

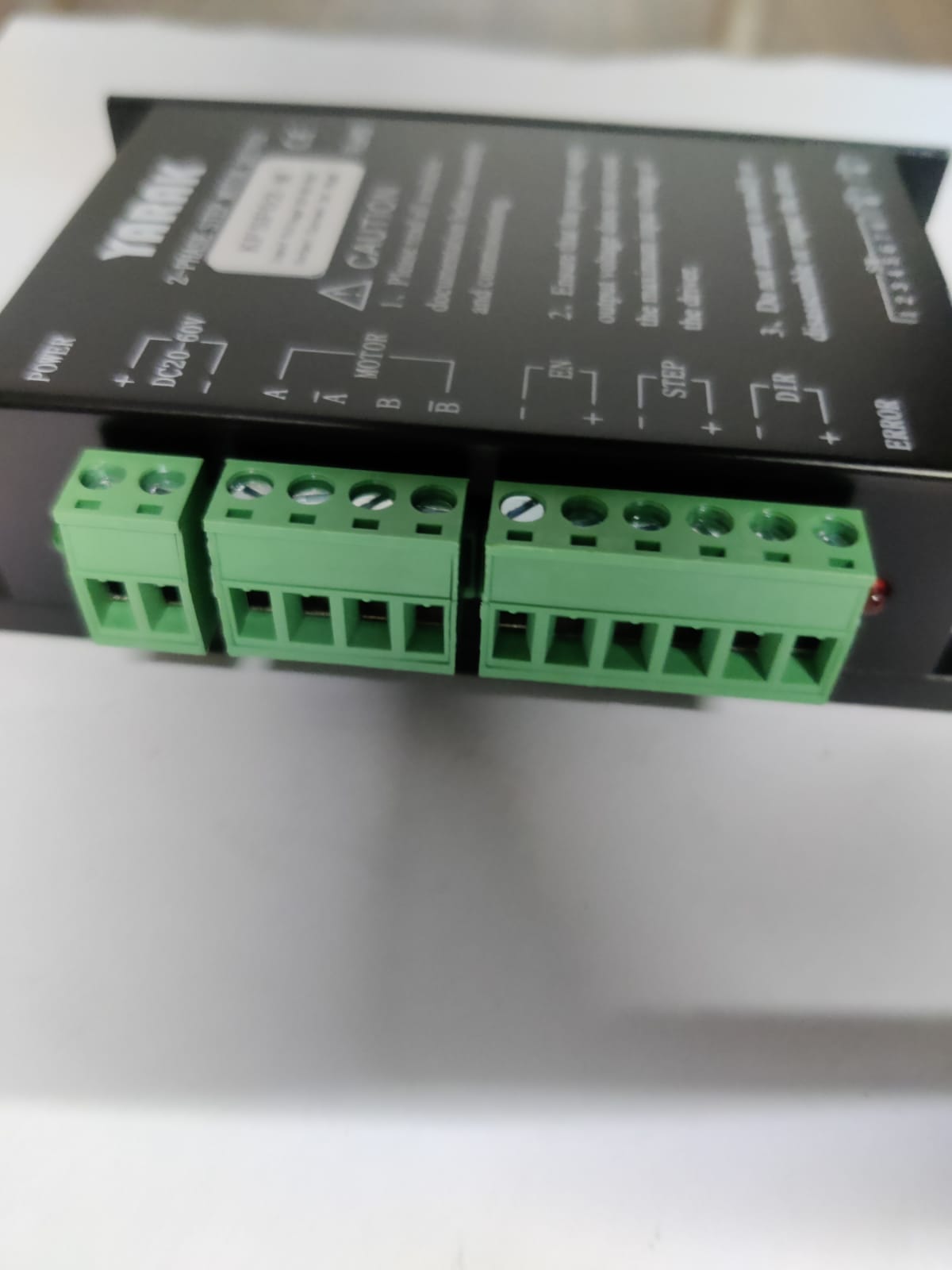

Yarak Laser Driver
The 3DM580 is a versatility fully digital stepping driver based on a DSP with advanced controlalgorithm. The 3DM580 is the next generation of digital stepping motor controls. It brings aunique level of system smoothness, providing optimum torque and nulls mid-range instability.Motor self-test and parameter auto-setup technology offers optimum responses with differentmotors and easy-to-use. The driven motors can run with much smaller noise, lower heating,smoother movement than most of the drivers in the markets. Its unique features make the 3DM580an ideal solution for applications that require low-speed smoothness.
Technical Parameter:-
| Brand | Leadshine |
| Output Current | 1 Minimum |
| Input Phase | Three Phase |
| Model Name/Number | 3DM580 |
| Operating Humidity | 40 %RH- 90% RH |
| Country of Origin | Made in India |
| Supply Voltage | 18 V (Minimum) |
| Logic Signal Current | 7 mA (Minimum) |
| Pulse Input Frequency | Max 500 kHz |
| Isolation Resistance | 100 m Ohm |
| Operating Temperature | 70 Degree C |

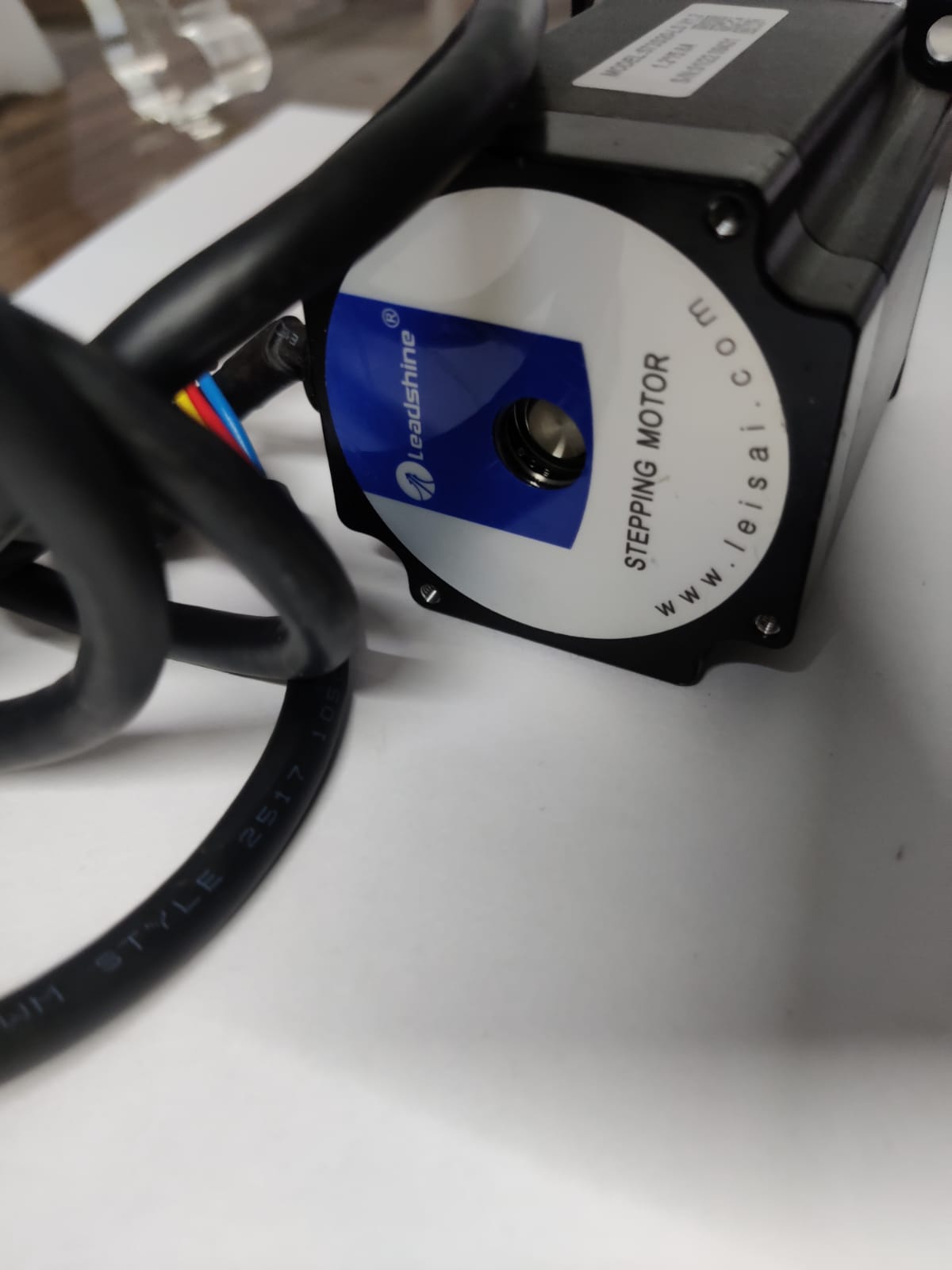

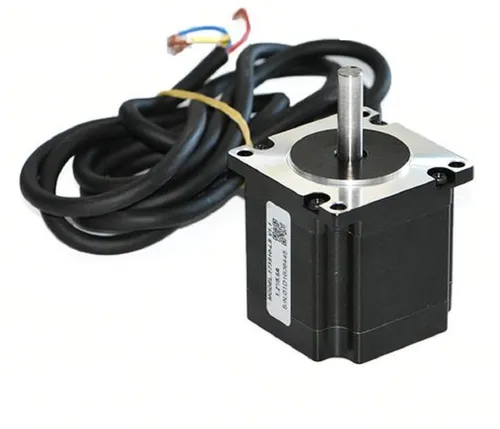

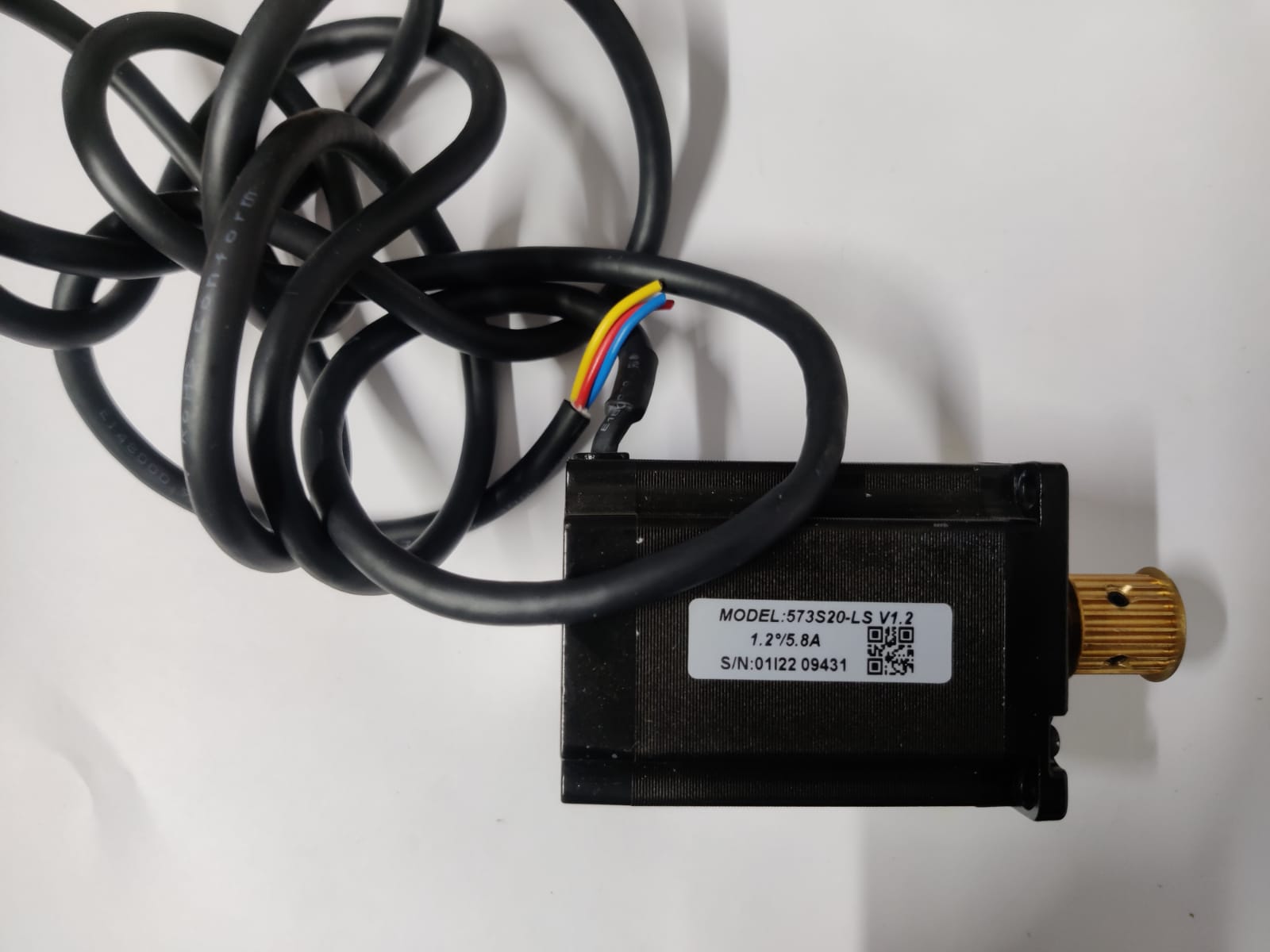

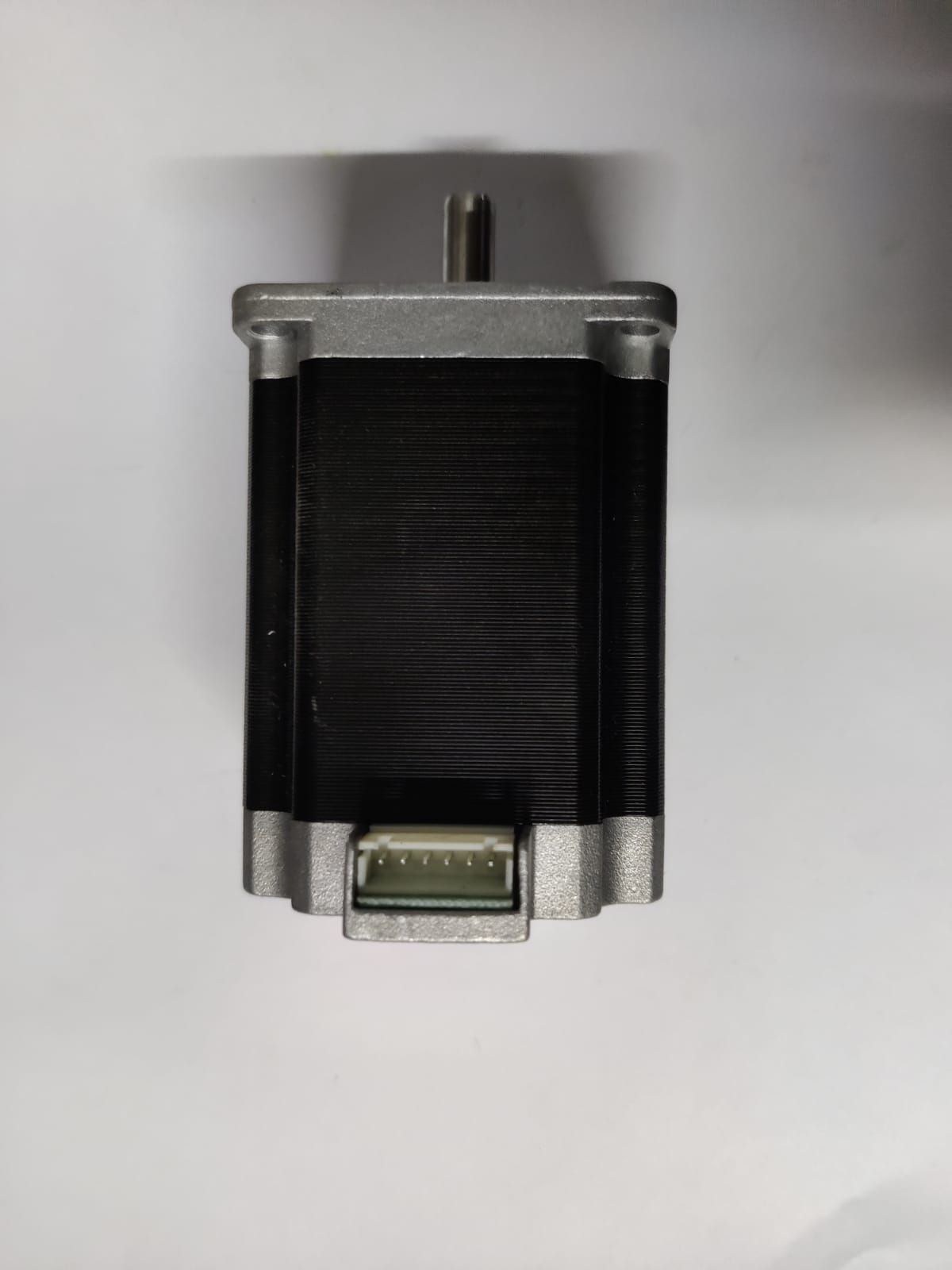

Laser Stepper Motor
573S10-LS is a three-phase hybrid stepper motor, mainly used in CO2 laser cutting machines.Built with premium quality materials including bearings and shaft made by famous manufacturers. They can move the attached load at high precision and with very low motor heating & vibration.
Technical Parameter:-
| Brand | Leadshine |
| Output Current | 1 Minimum |
| Input Phase | Three Phase |
| Model Name/Number | 3DM580 |
| Operating Humidity | 40 %RH- 90% RH |
| Country of Origin | Made in India |
| Supply Voltage | 18 V (Minimum) |
| Logic Signal Current | 7 mA (Minimum) |
| Pulse Input Frequency | Max 500 kHz |
| Isolation Resistance | 100 m Ohm |
| Operating Temperature | 70 Degree C |

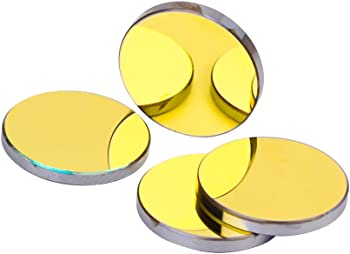

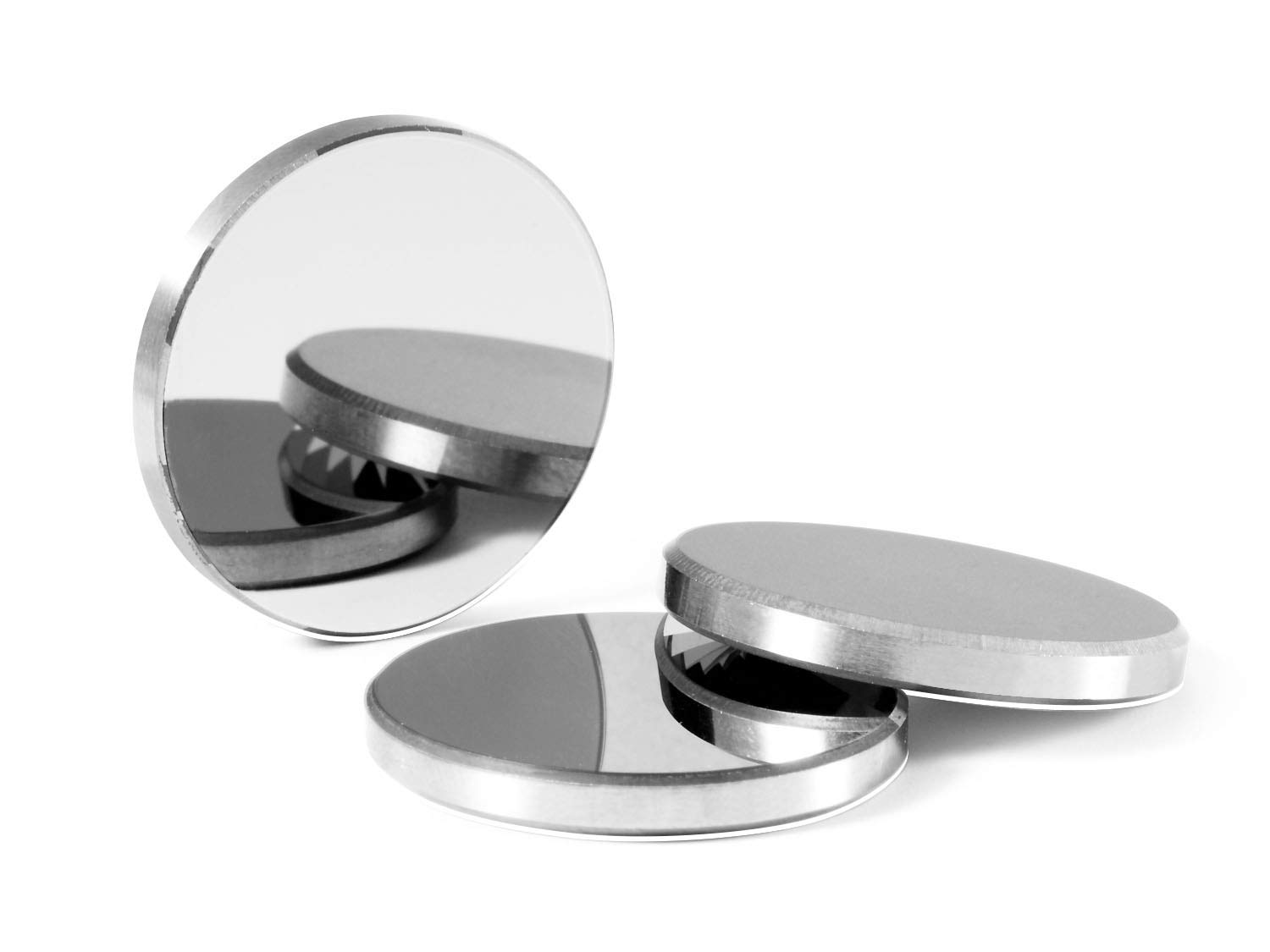

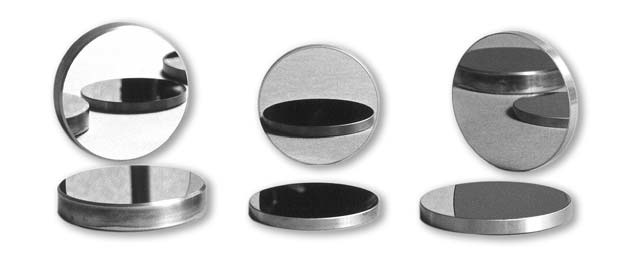

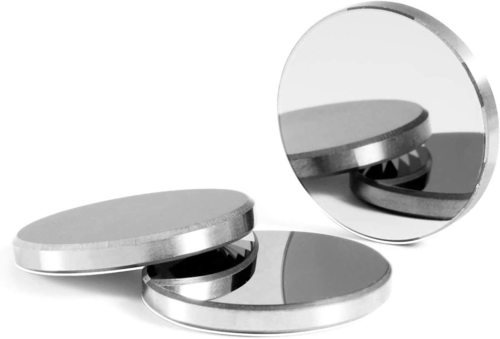

Laser Mirror
The co2 laser reflective mirror is an important component in the laser light transmission system. In the CO2 laser light path, the laser reflect mirror can be used in two ways. The mirror in the laser tube can be used as a tail mirror. The base of the mirror has a certain curvature, which can make the laser oscillate. In some laser designs, the laser reflective mirror can change the light in the laser tube and reduce the length of the laser tube. Outside the laser tube, the co2 laser reflect mirror and laser focus lens cooperate to form a complete optical path, it allows the laser machine to save space, reduces laser loss, and optimizes the laser’s working power preservation.
Technical Parameter:-
| Material | Metal |
| Diameter | 25 mm |
| Shape | Round |
| Thickness | 3 mm |
| Country of Origin | Made in India |
| Usage/Application | Laser Machine |

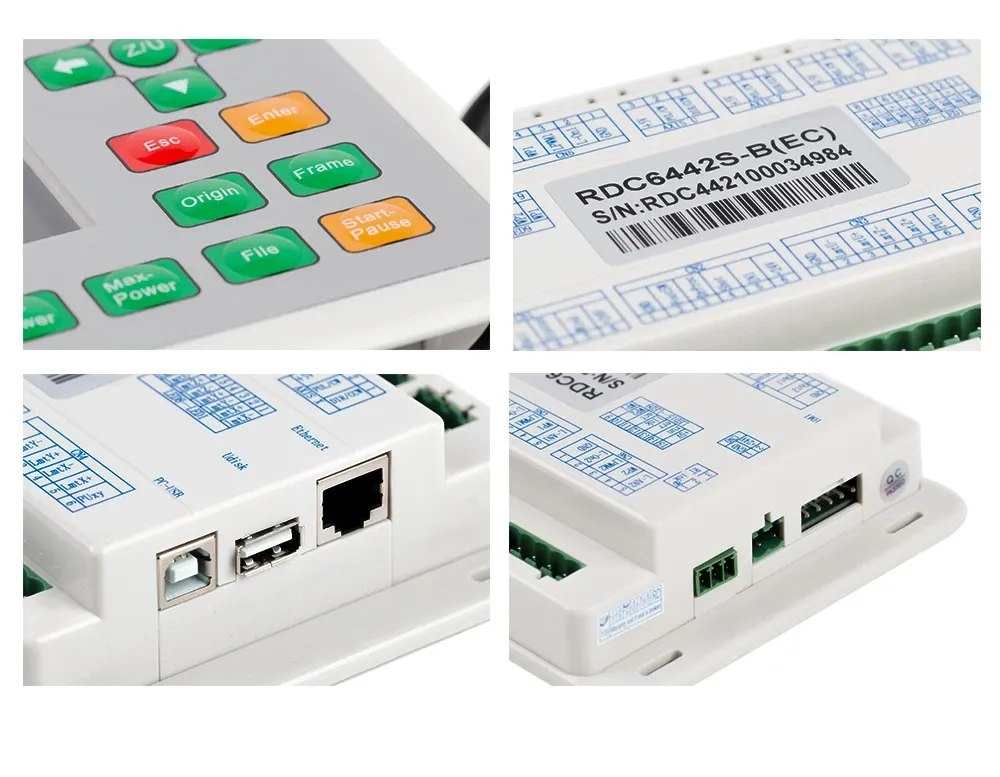

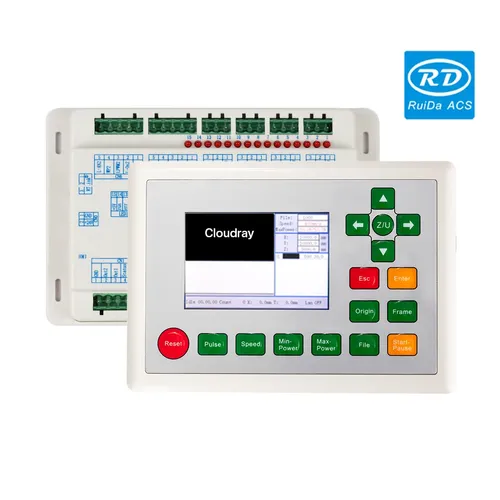

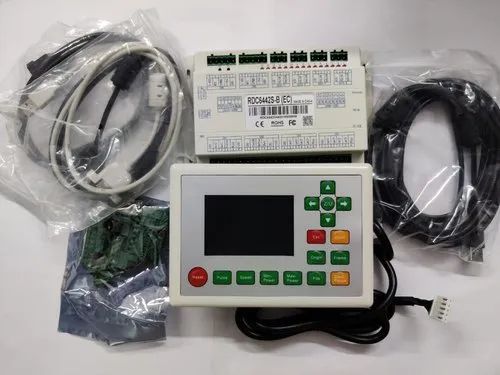

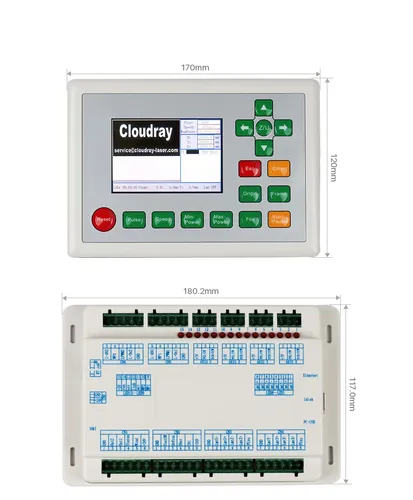

Laser Controllar
A good CO2 laser not only helps you a lot, but can save you a lot of money, but building a CO2 laser, there are many factors to consider when choosing a controller, the most important of which are your easy to use software, G-code post-processor, machine interface and firmware. If you want to build a proper CO2 laser, most people seem to choose to base it on Ruida.
With Ruida RDC6442G/S Laser Controller, you can get an industrial controller that runs the free RDWorks software.
The RDC6442G or 6442S just works. It has every feature you could want, is extremely fast, and documentation is not an issue as thousands of users have experienced every possible configuration and there is a wealth of information available on the internet.
Technical Parameter:-
| Features | Double Head Linkage |
| Brand | Cloudray Ruida |
| Model Number | RDC6442G, RD6442S |
| Product Code | LC08R6442S |
| Screen | 3.5 inch |
| Software | RD Works |

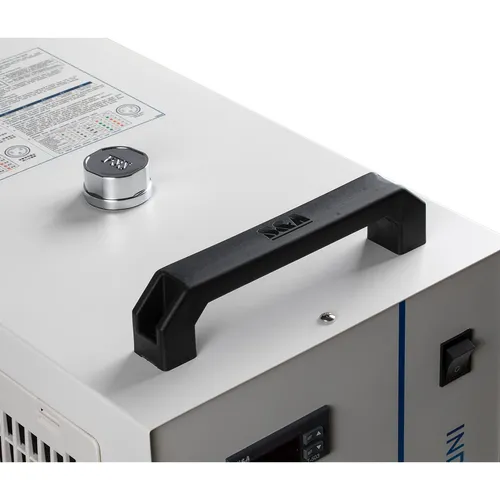

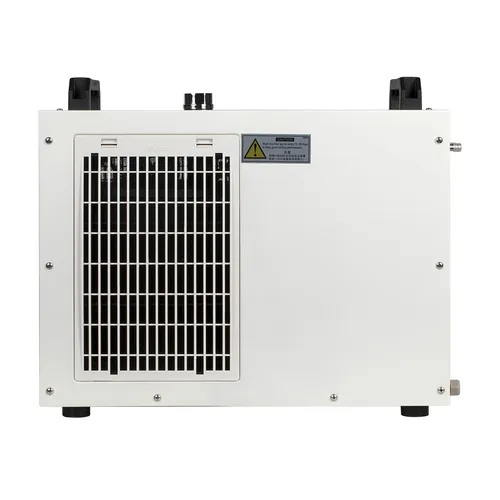

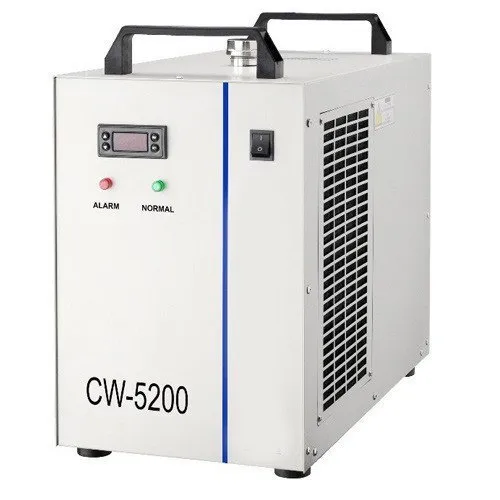

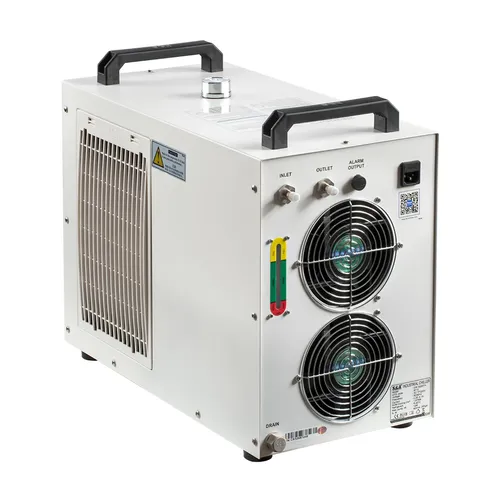

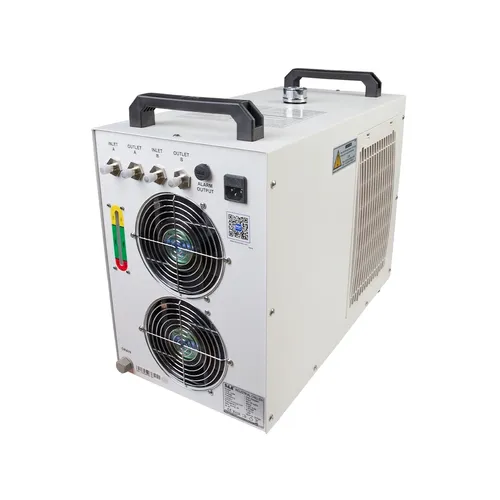

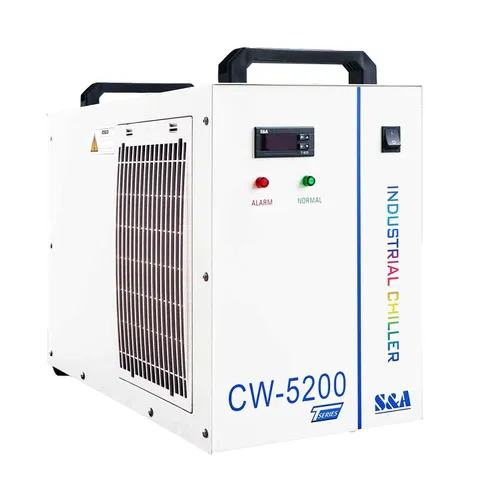

Laser Chillar
The Active Water Chiller is our refrigerated industrial chiller designed to keep precision cooling. Compressor pumps water through glass tubes at temperatures as low as 41 degrees Fahrenheit (5 C). The result is consistent high power and extended life for higher wattage laser tubes. Recommended for tubes of 90 to 155 watts.
Technical Parameter:-
| Brand | S And A |
| Model Name/Number | CW-5200DH |
| Voltage | 110 V |
| Tank Capacity | 6 L |
| Frequency Hz | 60 |
| Current Range | 0.45- 7.5 Amp |
| Machine Power | 0.71 kW |
| Compressor Power | 0.60 kW |
| Motor Power | 0.81 HP |
| Nominal Cooling Capacity | 1.64 kW |
| Refrigerant Charge | 350 kg |
| Pump Power | 0.05 kW |
| Max. Lift | 12 m |
| Net Weight | 26 kg |
| Dimension | 59x28x47 cm (LxWxH) |
| Reducer | Capillary |

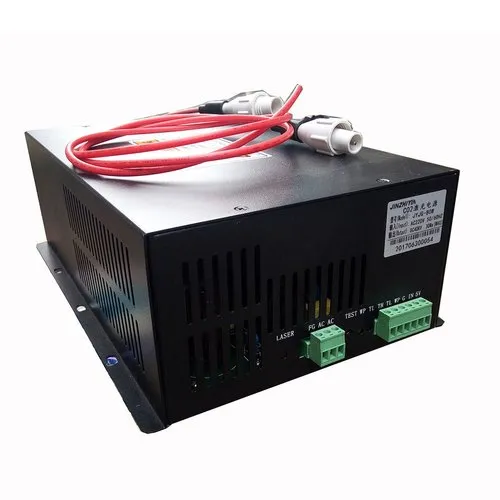

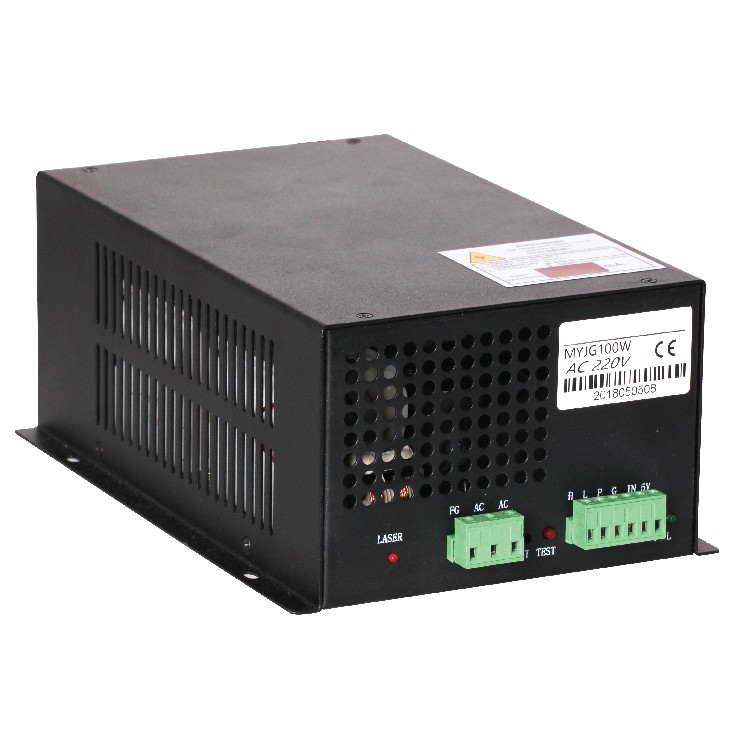

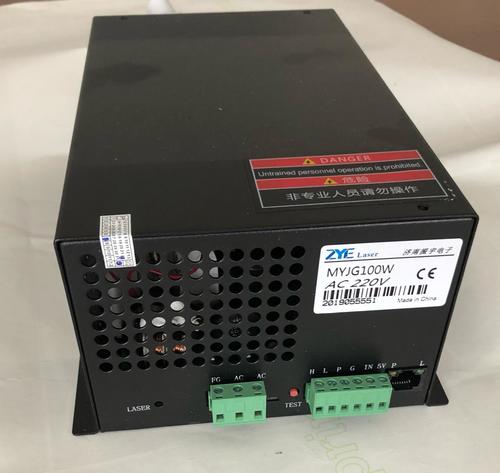

Laser Power Supply
This power supply is specially designed all brand co2 laser tube. It has quick response speed and effect, high performance, large cutting power; it also can prolong laser tube service life. The start and stop of laser can be easily controlled by TTL level. The power supply has TTL signal indication, water through signal indication and laser output indication.
Technical Parameter:-
| Country of Origin | Made in India |
| Power Source | Electric |
| Voltage | 440 V |
| Frequency | 50-60 Hz |
| Current Type | DC |
| Usage | Power Supplies |
| Color | Silver, Black |
| Phase | 3 Phase |
