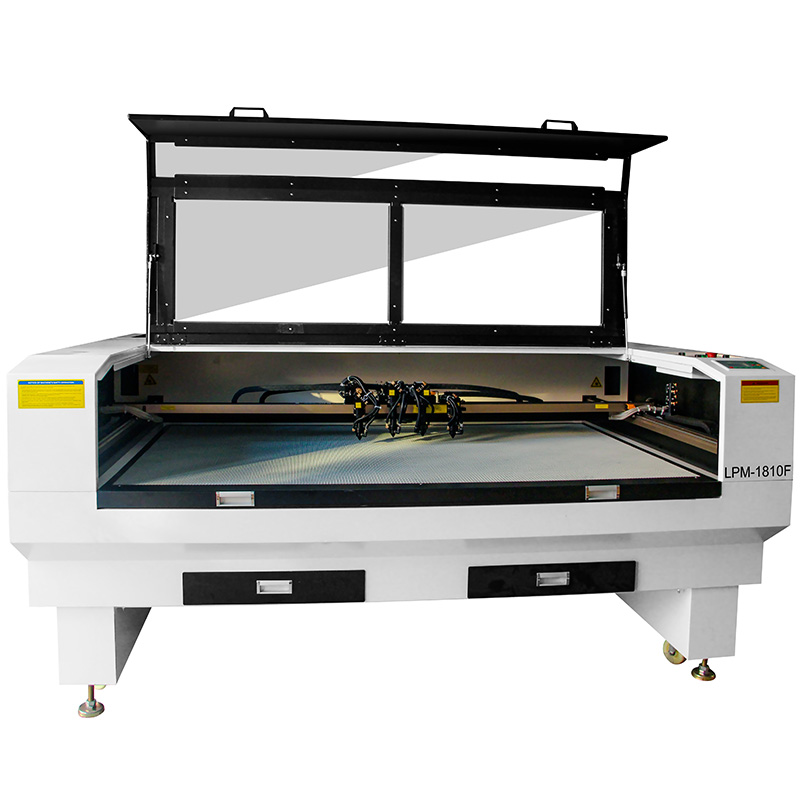

LPM-1610/1810 F Series

Working Area

The machine available in various sizes as per the market requirement like 1600X1000/ 1800X1000mm.

Source Power

The machine available in all the running power sources demand in the market like 130/150 watt.

Applicable Material

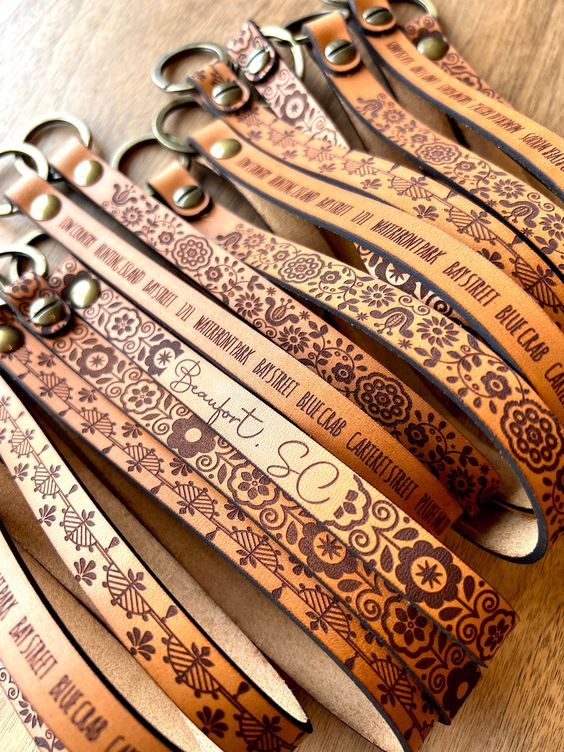

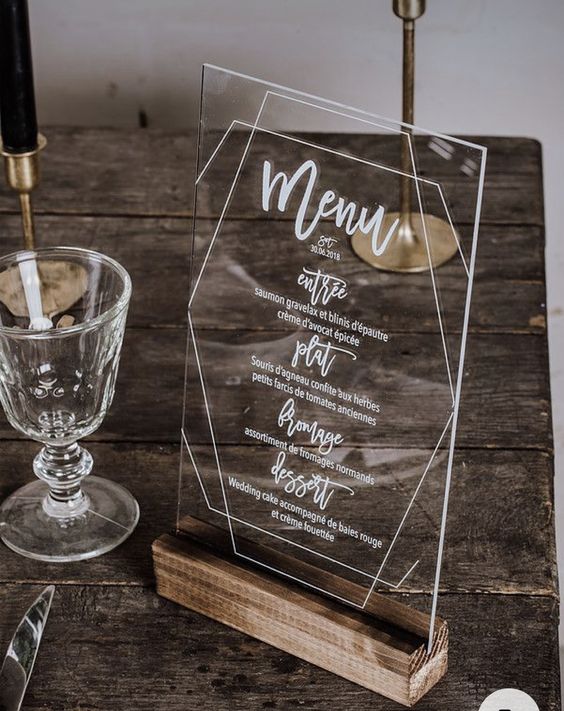

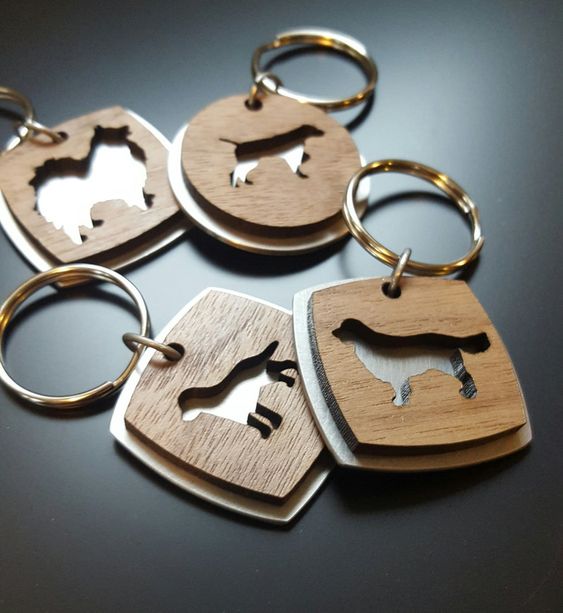

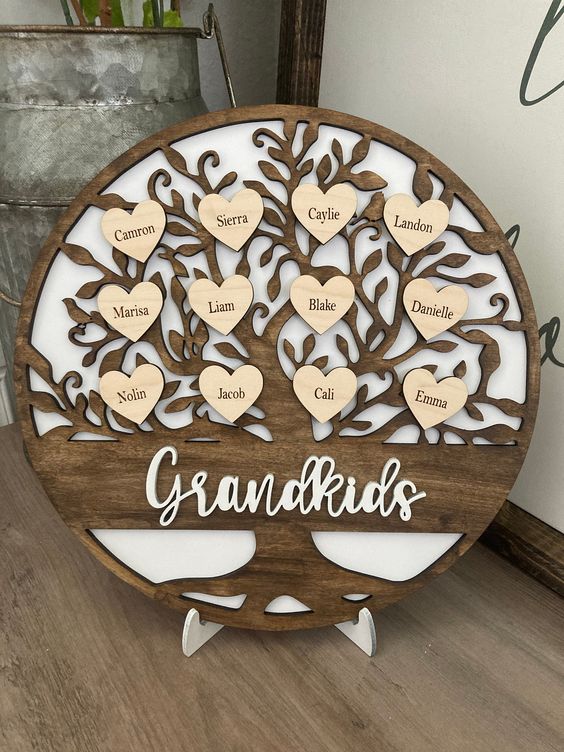

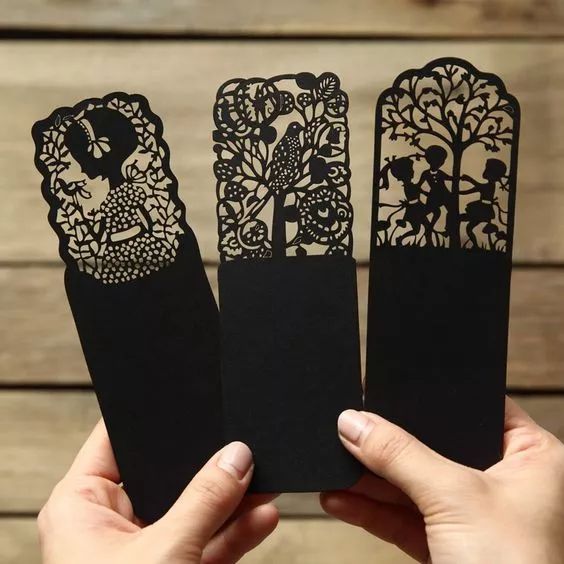

Acrylic, MDF, Leather, Rexin, PU, Paper etc.

FEATURES

Laser Source

Available in 130 and 150 watt

Cutting Bed

Honeycomb/Blade Type or Conveyor table to ensure proper ventilation and to prevent the accumulation of debris.

Linear Guide

High position accuracy and long service life. Sliding block running friction coefficient is small low noise, fast speed, reinforcement and rust prevention.
Easy maintenance,high speed and stable.

Offline System

Color screen + offline board.
Visualize workflow, graphical preview.
Continue to work after power off and output by layer.
Multiple input modes (PC/USB cable/network cable)

Control Panel

The operation interface is controlled by digital panel & computer software. All of parameter setting and process instructions can be finished on it. Both Chinese and English are available.

Head Type

Machine is available in multi head.

Model	LPM-1610/1810F
Version	Upgraded version
Laser power	130-180W (As approprite)
Laser head	Multi Head
Power Supply	AC220-240V,50/60 Hz
Working speed	0~30m/min
Working environment	Clean, less dust Temp:5~40℃, Humidity:5~80%
